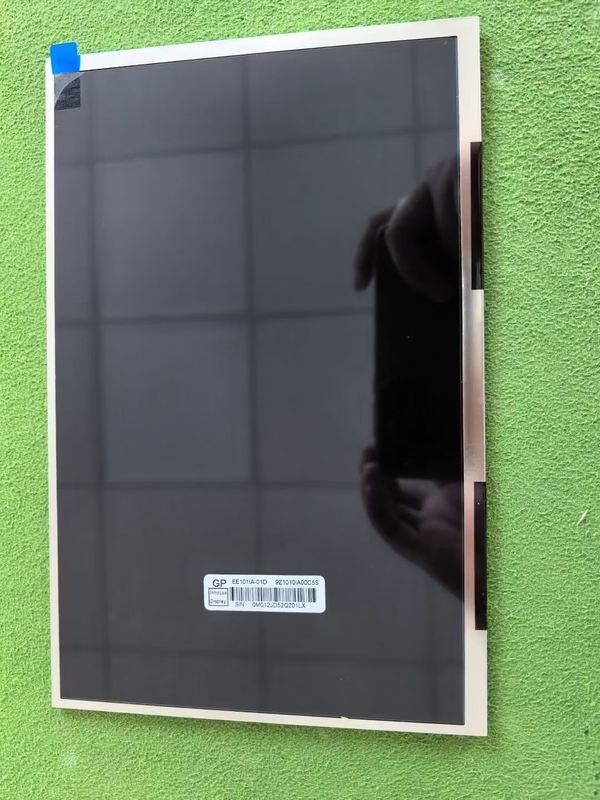

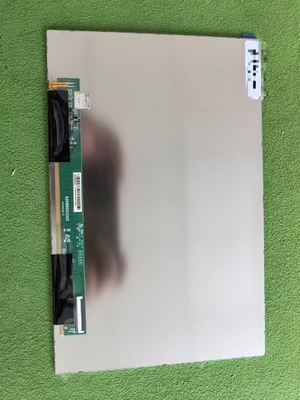

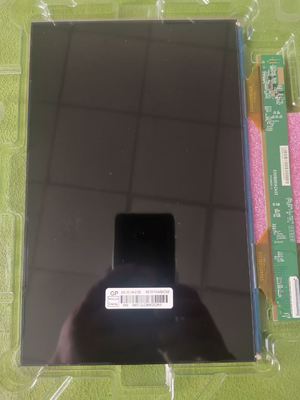

innolux Pad&Tablet PC lcd model 10.1Inch EE101IA-01D 1280x800Pixels FHD 149PPI lcd tablet 40pin

Innolux Corporation (hereafter called Innolux) EE101IA-01D is a 10.1 inch diagonal a-Si TFT-LCD display panel product, without backlight, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . Based on its features, Einklcd recommend that this model be applied to Pad & Tablet etc.Built-in EK79202 driver IC. According to the information stored in Einklcd this model mass production on Q4, 2012, Now this model is in production. We inputted this model's specification on Apr 1 2013 for the first time, and the latest update on Nov 14 2024. If you want to embed EE101IA-01D CELL in your future product, Einklcd strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail. The EE101IA-01D production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand: Innolux

Model P/N: EE101IA-01D
Diagonal Size: 10.1"

Panel Type: a-Si TFT-LCD, CELL , FOB
Resolution1280(RGB)×800, WXGA 149PPI

Pixel Format: RGB Vertical Stripe
Active Area 216.96(W)×135.6(H) mm

Bezel Opening-
Outline Size: 223.95(W)×144.24(H) ×1.06(D) mm

Surface Hard coating
Brightness 0 cd/m²

Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode: IPS, Normally Black, Transmissive
Best View o Symmetry

Response Time: 10/15 (Typ.)(Tr/Td)
Glass Depth0.40+0.40 mm
It's Depth of CF Depth + Array Depth
CELL Depth = CF Depth + Array Depth

Transmissivity 5.85% (Typ.)
Display Colors: 16.7M 50% NTSC

Lamp Type:No B/L , Without Driver
Frequency 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Screen: Without
Driver IC: COG Built-in EK79202
Panel Weight: 80.0g (Typ.)

Application: Pad & Tablet
Signal Interface LVDS (1 ch, 8-bit) , 40 pins Connector
Input Voltage 2.5/8.2/15/-13V (Typ.)(VDD/AVDD/VGH/VGL)
EnvironmentOperating Temp.: -20 ~ 70 °C ;

Storage Temp.: -30 ~ 80 °C
